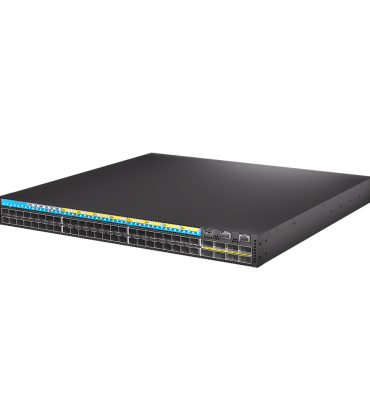

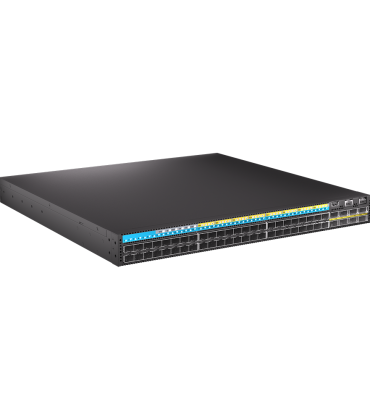

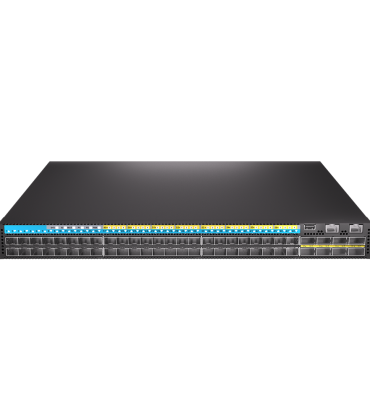

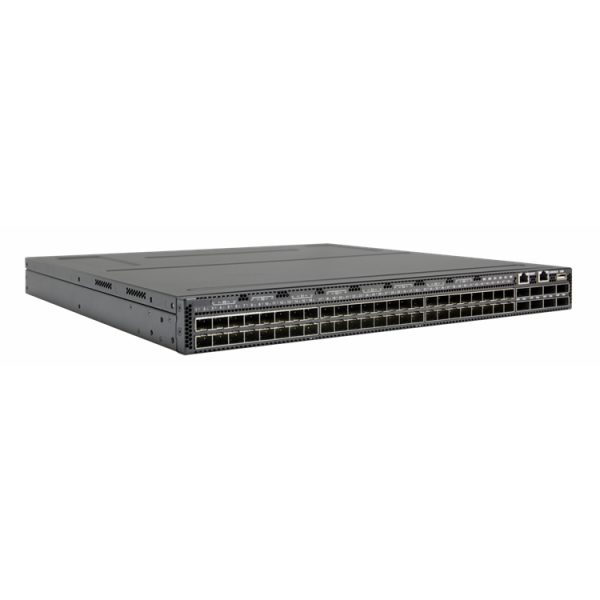

S7548-8Z 56口25G数据中心交换机, 48个25G SFP28 和 8个100G QSFP28 上联口, 双冗余供电模块,多智能风冷模块

  • MPLS, IPRAN, MLAG
  • 1+1 hot-swaped Power modules
  • 4 Smart Fan Modules
  • QinQ, BGP, Ipv6

功能亮点:

  1. QinQ
  2. BGP
  3. OSPF
  4. MLAG
  5. IPv6
  6. VxLAN
  7. MPLS
  8. Layer 3 high-function

应用场景:

  1. Enterprise /Campus Networks
  2. Telecommunication Operators Networks
  3. Data Center Networks

Get a quote

描述

绿色节能的系统设计

S7548N-8Z 交换机采用可调速风扇,系统根据外部环境温度高低,对风扇速度进行自动调节,以节省能源。交换机可根据端口的业务流量大小,来调整功率消耗,尽可能节省能源。

可灵活配置的转发表项满足不同业务部署场景

灵活管理表项技术FTMTM 使得用户根据不同的应用场景需求,调整各个硬件转发表项的大小。最大支持128K MAC地址表或32K IP路由表。

数据中心DCB特性

支持许多新的数据中心功能,如优先级的流量控制(PFC),增强传输选择(ETS),量化拥塞通知(QCN),以及数据中心的TCP。 MLAG在数据中心网络TOR交换机上也是很好的选用特性。

高可靠性

硬件

现场可插拔模块化电源

模块化电源模块支持AC 1+1备份

风扇支持N +1备份

风扇支持智能调速

系统对芯片组的温度、电源与风扇的状态进行实时监控

软件

支持LACP, ECMP, VRRP, VARP, STP/RSTP/MSTP, Smart Link, BFD, ERPS和 load-balancing.

Sysmon功能可以检测CPU状态并在软件出错的前提下自我采取保护措施



出色的QoS管理

路由交换机为每个端口提供了8个硬件队列。支持多阶调度(WDRR,SP)和Tail Drop/WRED 等拥塞保护机制。并且运用了灵活的队列调整算法来实现针对队列或者针对端口的流量整形。

同时,入口和出口方向的策略管理都提供了以64Kbps为单位的带宽监测。支持srTCM(单速率三色标记)和trTCM(双速率三色标记)。

三网合一服务支持与带宽保证的高品质应用

S7548N-8Z为三重播放服务提供了高带宽,如IPTV,视频监控。内置的QoS功能和灵活的队列技术保障高品质的服务。

丰富的组播协议集(IGMP侦听,IGMP V1/V2,PIM-SM)支持16K组播组,1K物理复制,每组4K逻辑复制。IPTV业务和组播时延的有效控制完全可以支持。

全面的网络安全策略

S7548-8Z支持用户级、交换机级和网络级的安全控制。

基本的IPv4/IPv6/MAC ACL被采用以分别过滤IPv4/IPv6/Non-IP分组,并且可以应用到物理端口和VLAN上。除此之外,扩展的IPv4/IPv6访问控制列表也可以使用。在一个ACL规则内,IP和MAC的ACE生效可以同时过滤IP和非IP数据包。

ARP检测和IP源防护功能,防止网络遭受恶意ARP攻击。 提供CPU流量保护、风暴控制功能,优化CPU负载功能。集中式的802.1x认证,禁止非法用户访问网络。

规格

硬件规格:

项目 S7548-8Z

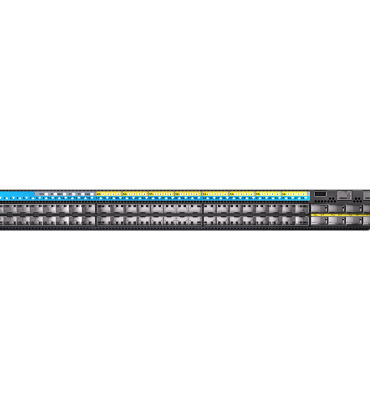

以太网端口 48*25G SFP28,8*100G QSFP28
带外管理口 1*Console (RJ45)

1* 1000Base-T(RJ45)

1* USB Store

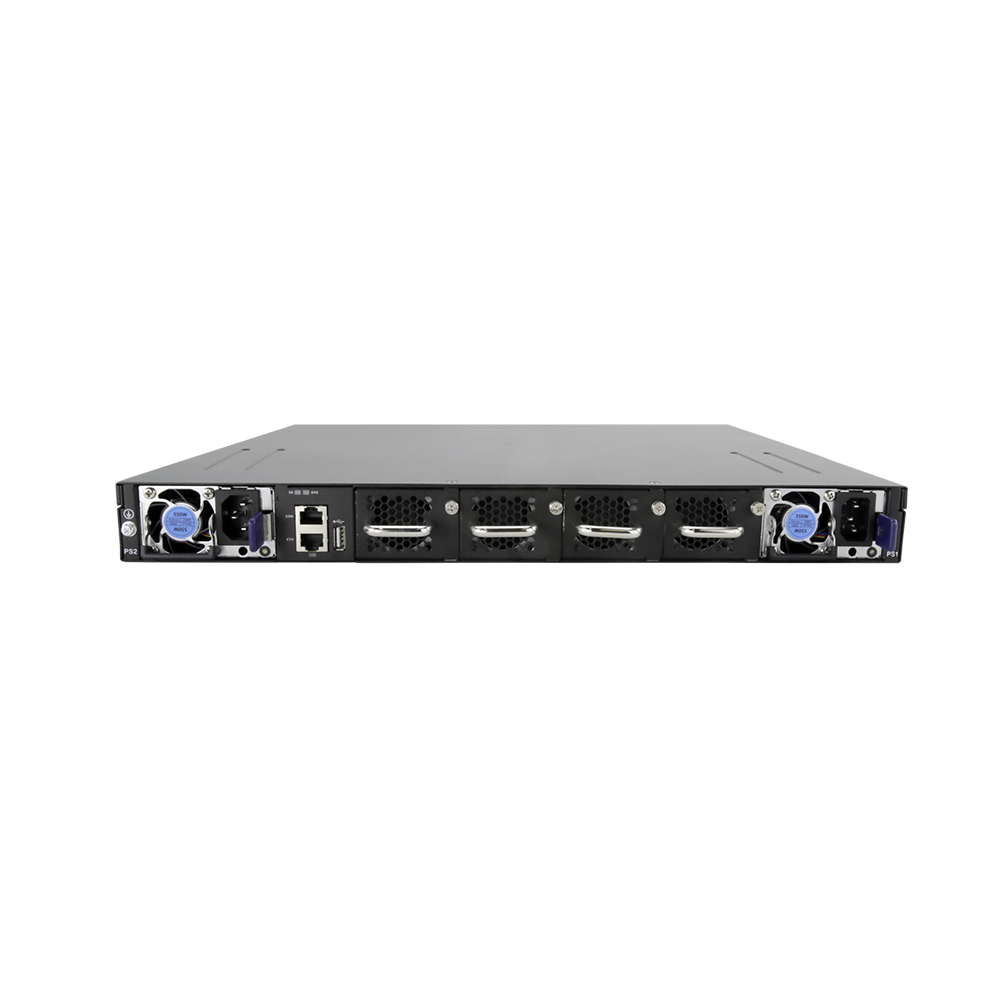

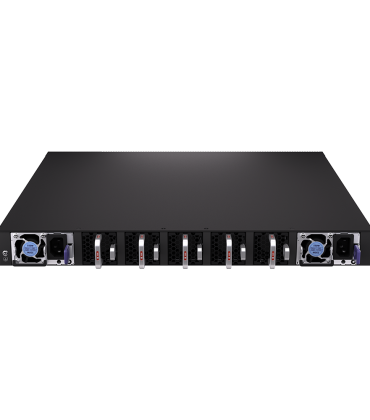

风扇系统 4* hot-swap Fan Modules
风道 Front to rear
电源系统 Dual hot-swap CRPS
FLASH 8GB
DRAM 2GB
交换容量 4 Tbps
包转发率 2976 Mpps
延时 700 ns
机箱尺寸(W*D*H) 440 x436x 480 mm
净重 9.2kg (Include2 Power Module and 2 Fan Module)
运行温度 0ºC to 45ºC
存储温度 -40ºC to 70ºC
运行湿度 10% to 90% (No condensation)
存储湿度 0 to 95% (No condensation)
高温报警阈值 50ºC



软件功能列表

Support ●  No Support ○

Software Features
Feature Description Support
Type Sub Type Feature
Ethernet basic features Ethernet interface Ethernet interface operating modes(full duplex, half duplex, and auto-
negotiation)
Ethernet interface operating rates
Jumbo Frame
port-xconnect
Flow-control Flow-control tx/rx
storm-control Port based storm-control
VLAN based storm-control
Port-block Port-block(know/unknown unicast; know/unknown multicast/broadcast)
Port-isolate L2/L3/All  Port-isolate
Uni-direction isolate
L2 Protocol Tunnel L2 Protocol Tunnel(support CDP/CFM/DOT1X/LLDP/SLOW-PROTO/STP/VTP
Forward mode Store-and-forward
Cut-through
VLAN VLAN Access mode Access/Trunk
Default VLAN
VLAN Classification VLAN Classification(port based/mac based/IP based/protocol based)
QinQ Basic QinQ
Selective QinQ
VLAN Mapping(1:1 VLAN Translation)
VLAN Statistics VLAN Statistics
Private VLAN Private VLAN
Voice VLAN Voice VLAN
Guest VLAN Guest VLAN
MAC MAC Address Table Automatic learning and aging of MAC addresses
Hardware Learning
Static and dynamic  MAC address entries
Blackhole MAC
MAC Flapping detect MAC Flapping detect
Port Bridge Port Bridge
LAG Link aggregation Static-LAG & LACP
LAG load balance(SLB)
LAG load balance(DLB)
LAG load balance(RR)
LAG Self-healing
Link aggregation weighting
Ethernet Ring protection features xSTP STP Spanning-Tree Protocol
RSTP Rapid Spanning-Tree Protocol
MSTP Multi-instance Spanning-Tree Protocol
Spanning-Tree Protocol Protection BPDU Filter/Guard
Root Guard
Loop Guard
Anti TC-BPDU attack
ERPS ERPS Single ERPS ring
tangent ERPS rings
intersecting ERPS rings
compatible with RRPP
G.8031 G.8031 G.8031(Ethernet Linear Network Protection)
G.8032 G.8032 G.8032 V1 & V2
Single Ring
Sub Ring
Loop back Detect Loop back Detect Loop back detection
Layer2 Multicast Layer2 Multicast IGMP Snooping IGMPv1/v2/v3 Snooping
Fast leave
Static IGMP snooping group
MVR MVR(Multicast VLAN Registration)
IPv4 Forwarding ARP ARP Static and dynamic ARP entries
Aging of ARP entries
Gratuitous ARP
ARP proxy basic ARP-Proxy
local ARP-Proxy
IPv4 Unicast Routing IPv4 Static Routes IPv4 Static Routes
Black hole Routes
co-work with IP SLA
VRF(Virtual Routing and Forwarding)
uRPF check
RIP RIPv1/v2
OSPFv2 OSPFv2
IS-IS IS-IS
BGP IBGP
EBGP
Route policy Route-map
IPv4 prefix-list
PBR PBR(Policy-based Routing)
ICMP ICMP redirect
ICMP unreachable
ECMP ECMP(SLB)
ECMP(DLB)
ECMP(RR)
ECMP Self-healing
IP unnumbered IP unnumbered
IPv4 Multicast Routing IGMP IGMPv1/v2/v3
IGMP-Proxy
IGMP SSM Mapping
PIM PIM-SM
PIM-SSM
PIM-DM
IPv6 Forwarding IPv6 Basic Protocol ICMPv6 ICMPv6
NDP NDP
PMTU PMTU
IPv6 Unicast Routing IPv6 Static Routes IPv6 Static Routes
RIPng RIPng
OSPFv3 OSPFv3
IS-IS IS-IS
VRRP v3 VRRP v3
IPv6 Multicast Routing MLD v1/v2 MLD v1/v2
MLD v1/v2 Snooping MLD v1/v2 Snooping
MVR6 MVR6
PIM-SM v6 PIM-SM v6
IP Tunnel IPv6 over IPv4 Tunnel IPv6 over IPv4 Tunnel
6to4 Tunnel 6to4 Tunnel
ISATAP Tunnel ISATAP Tunnel
IPv6 Service DHCPv6 DHCPv6 Relay
DHCPv6 Snooping
IPv6 Prefix List IPv6 Prefix-list
Device reliability features BFD BFD BFD for Static route
BFD for OSPFv2
BFD for VRRP/Track
BFD for PBR
VRRP VRRP VRRP
Track for VRRP
Smart Link Smart Link multi-instance
load balance
Multi-Link
Monitor-link
MLAG MLAG MLAG basic
MLAG orphan Port
Ethernet OAM EFM EFM (802.3ah) Auto detection
Network fault detection
Network fault handle
remote loop back
CFM CFM (802.1ag) Hardware CCM detect
MAC Ping
MAC Trace
Y.1731 Y.1731 Latency and Jitter measure
QoS features QoS Traffic classification Traffic classification based on COS/DSCP (simple classification)
Traffic classification based on ACL ( complex classification)
Traffic classification based on inner header of the tunnel packets
Traffic behaviors Queue scheduling
Remark the priority fields(COS/DSCP) of the packet based on ACL
Remark the priority fields(COS/DSCP) of the packet based on Table Map
Flow redirection
Flow mirror
Traffic policing Traffic policing based on direction(in/out)  of Port
Traffic policing based on direction(in/out) of VLAN
Traffic policing based on direction(in/out) of flow
Traffic policing based on direction(in/out) of aggregated flow
Traffic shaping Queue based traffic shaping
Port based traffic shaping
Congestion management SP(Strict Priority)scheduling
WDRR(Weighted Deficit Round Robin)scheduling
SP + WDRR mixed scheduling
Congestion avoidance TD(Tail Drop)
WRED(Weighted Random Early Detection)
Traffic statistics Packet counts and bytes statistics based on traffic classification
Packet counts and bytes statistics based on the color after traffic policing
Forwarded and discarded packet counts and bytes statistics
ECN (Explicit congestion ECN tags based on Tail Drop
notification) ECN tags based on WRED
Data Center VARP Virtual gateway VARP(Virtual-ARP)
VARP subnet
Tunnel VxLAN Manual configure VxLAN tunnel
VxLAN distributed gateway
VxLAN active-active access
Interconnect across Data Centers based on VxLAN
L2 Protocol packet pass through
Edit DSCP in VxLan outer header
BGP EVPN
Support to enable/disable overlay split horizon per-VNI
GRE Tunnel GRE Tunnel
NVGRE Tunnel NVGRE Tunnel
GENEVE Tunnel GENEVE Tunnel
DCB DCBX LLDP support DCBX TLV
PFC PFC
Metro features IPRAN LDP LDP
MPLS Forwarding MPLS Forwarding
VPWS VPWS
VPLS VPLS
MPLS OAM MPLS OAM
MPLS Stats MPLS Stats
L2VPN L2VPN
L3VPN L3VPN
ACL MPLS ACL
QoS MPLS QoS
Security and management System Security SSH SSHv1/v2
RSA Key generation
RADIUS RADIUS
TACAS+ TACAS+
AAA Authentication
Authorization
Accounting
Dot1x Port based dot1x
MAC based dot1x
Guest VLAN
ACL MAC/IP ACL
Basic Mode ACL
Port-group ACL
VLAN-group ACL
IPv6 ACL
ACL UDF
Global ACL
Time Range
ARP Inspection ARP Inspection
IP Source Guard IP Source Guard
Port Security Limitation on MAC address learning on interface
VLAN Security Limitation on MAC address learning on VLAN
Control Plane Policy (COPP) Black list/wihte list
Rate limit
CPU Traffic Limit CPU Traffic Limit
Prevent DDOS attack Prevent DDOS attack (ICMP Flood/Smurf/Fraggle/LAND/SYN Flood)
Login filter Telnet/SSH ACL filtering
Telnet/SSH IPv6 ACL filtering
Link-Flapping detection Link-Flapping detection
Network Management DHCP DHCP Server
DHCP Relay
DHCP Snooping
DHCP Client
DHCP Option82
DHCP Option252
RMON RMON
sFlow sFlow v4/v5
IP SLA IP SLA
IPFIX IPFIX
Latency/Buffer Monitor Latency Monitor
Buffer Monitor
EFD Elephant Flow Detection
NTP NTP(Network Time Protocol)
Err-disable Err-disable detection and recovery
DNS Static DNS Client
LLDP LLDP
Terminal Services Command Line Interface Configurations through CLI (Command Line Interface)
Help information Banner configuration
Help information in English
Terminal service Vty Terminal service
Console Terminal service
Management interface In-band management interface and configuration
Out-band management interface and configuration
User privilege management privileged user proirity and privileged commands
Configuration and maintenance Configuration Management SNMP Network management based on SNMPv1/v2c/v3
Public and private MIB
Public and private Trap
WEB Configuration and management based on WEB UI
RPC-API Configuration and management based on RPC-API
Smart Config Smart Config(Automatically configuration when system start)
OVSDB Configuration and management based on OVSDB
system profile configuration change the system specifications by choose different STM Profiles
License control Feature configuration based on License
Restore factory default Restore factory default configuration
configuration
File System File system File system(support directory and file management)
Upload and download Upload and download files through FTP or TFTP
Upload and download files through Xmodem
Debugging And Maintenance Debug per-module Debug features
ICMP Debug
BHM Software process monitor: BHM(Beat Heart Monitor)
Hardware Watch Dog
Log & alarm CPU usage display and  alarm
Memory  usage display and  alarm
Device temperature, PSU, FAN, status display and alarm
User operation logs
Management of logs, alarms, and debugging information
VCT VCT(Virtual Cable Test)
system diagnostics Detailed Diagnostic-information collection
Reboot Manual reboot
Schedule Reboot
Reboot Information logging
network diagnostics Ping
IPv6 Ping
Trace route
mirror Port mirror
Flow mirror
Remote mirror
Multi-destination mirror(m:n)
Use CPU as mirror source
Use CPU as mirror destination and analyze packet
ERSPAN
CPU statistics To CPU/From CPU packets statistics
L2 Ping layer2 network connectivity detection – L2Ping (MAC Ping/Trace)
UDLD UDLD(Unidirectional Link Detection)
unidirectional unidirectional forwarding of the fiber
Loop back port loop back
hardware loop back(internal/external)
System time Time configuration
Timezone
Version Upgrade system soft ware upgrade upgrade with the local image file
upgrade with the remote TFTP server
Uboot upgrade Online upgrade Uboot



性能参数列表

Class Feature Sub Spec Values Note
Ethernet Basic Jumbo frame Maximum Jumbo frame size 9600
Unicast MAC MAC address Capacity 98304
MAC Learning Rate (SW) > 4000pps
MAC Learning Rate (HW) > 10Gbps
Blackhole MAC address capacity 128
Multicast MAC MAC address Capacity 2048
VLAN VLAN IDs 4094
VLAN Instances 4094
VLANs to enable statistics 256
VLAN Mapping Maximum mapping table 64
Maximum rules Num 1024
EVC Maximum EVC Num 4094
Link Aggregation (Static&LACP) Maximum Member Num per group No limitation
Maximum Group Num 64
Load balance key mode static/dlb/rr/resilient/self-healing
Convergence time < 50ms
VLAN Classification Maximum Rule Num 4096
Maximum Group Num 1
Base MAC Capacity 512
Base IPv4 Capacity 448
Base IPv6 Capacity 32
Base Protocal Capacity 7
Ethernet Ring protection STP Convergence time < 30s
RSTP Convergence time < 1s
MSTP Instance Num 64
Convergence time < 1s
ERPS Domain Num 16
Ring Num 1 Primary ring/domain
2 Sub ring/domain
Protection instance Num per Ring 64
Switchover time < 50 ms
G.8031 Group numbers 256
Switchover time < 50 ms
G.8032 Rings 256
Maximum member ports per Ring 256
Switchover time < 50 ms
Ethernet OAM CFM(802.1ag) Maximum Session Num 1024
Maximum domain Num 8
CCM Interval types 7
CCM minimum Interval 3.3ms
Maximum Down MEP Num 1024
Maximum Up MEP Num 1024
Maximum LMEP Num 1024
IPv4 unicast ARP ARP Capacity 12288
IPv4 FIB 56K
ECMP ECMP Group 240 (share with IPv6)
PBR Policy Route Map 64
Policy Based Routing ACE 256
OSPF Maximum Static Neighbors 256
Maximum Summar address 2000
IPv4 multicast IPMC Multicast Routing Table 1024
Multicast routing downstream interfaces 2048 routed interfaces
4096 VLAN interfaces
IGMP Snooping Maximum Groups Num 2048
Maximum Member Num N/A
MVR Maximum Group Num 2048 (Share with V6)
Maximum Member Num 4096
IPv6 unicast Host Route NDP Capacity 2048
IPv6 FIBv6 4096
ECMP Group 240 (share with IPv4)
IPv6 multicast IPMC Multicast Routing Table 512
Number of interfaces that support 1536
Multicast routing table
MVR V6 Maximum Entry Num 2048 (Share with  IPv4)
Maximum Member Num 4096
IP tunnel IP Tunnel Tunnel Peer Capacity 8
QoS Per-port Queue Num Unicast Queue 10
Multicast Queue
Monitor Queue
Packet Buffer System Packet Buffer Capacity 36MByte
Granularity Policer granularity 0~2M: 10K
2M~100M: 40K
100M~1G: 80K
1G~2G: 120K
2G~4G: 250K
Queue Shape granularity 4G~10G: 500K
Port Shape granularity 10k
Flow entry Ingress Port qos ipv4 flow entries 1532
Ingress Port qos ipv6 flow entries
Ingress Port qos flow stats entries 511
ACL IPv4 ACL Ingress Port ACL for IPv4 1488 Ingress and  The Ingress IPv4/IPv6/MAC ACL rule share the Ingress resource and the Egress rules share the Egress resource
Ingress VLAN ACL for IPv4
Egress Port ACL for IPv4 464
Egress VLAN ACL for IPv4
IPv6 ACL Ingress Port ACL for IPv6 744
Ingress VLAN ACL for IPv6
Egress Port ACL for IPv6 232
Egress VLAN ACL for IPv6
ACL Flow stats Ingress  ACL flow stats entries 1022 Egress ACL rules use separate resource pool
Egress  ACL flow stats entries 511
CoPP CoPP rules 249
CoPP flow stats entries 249
UDF UDF rules 256
UDF flow stats entries 128
Security IP Source Guard IPv4 maximum rules Num 768
IPv6 maximum rules Num 64
802.1x base MAC Maximum Entries 256
DHCP Snooping Maximum bound entry 4096
IPFIX IPFIX IPFIX Member 4096
Reliability BFD Maximum Session Num share 128
S-BFD Maximum Session Num
VRRP Maximum Group Num 63
Smart Link Maximum Group Num 16
Maximum Instance Num 64
Switchover time <50ms
Monitor Link Maximum group Num 16
Maximum up-link Num per group 16
Data center VARP Virtual IP Num per Port 15
VXLAN VXLAN tunnel 4092
VNI 1024
VTEP Peer 24576
VXLAN Gateway MAC for DVR 512
