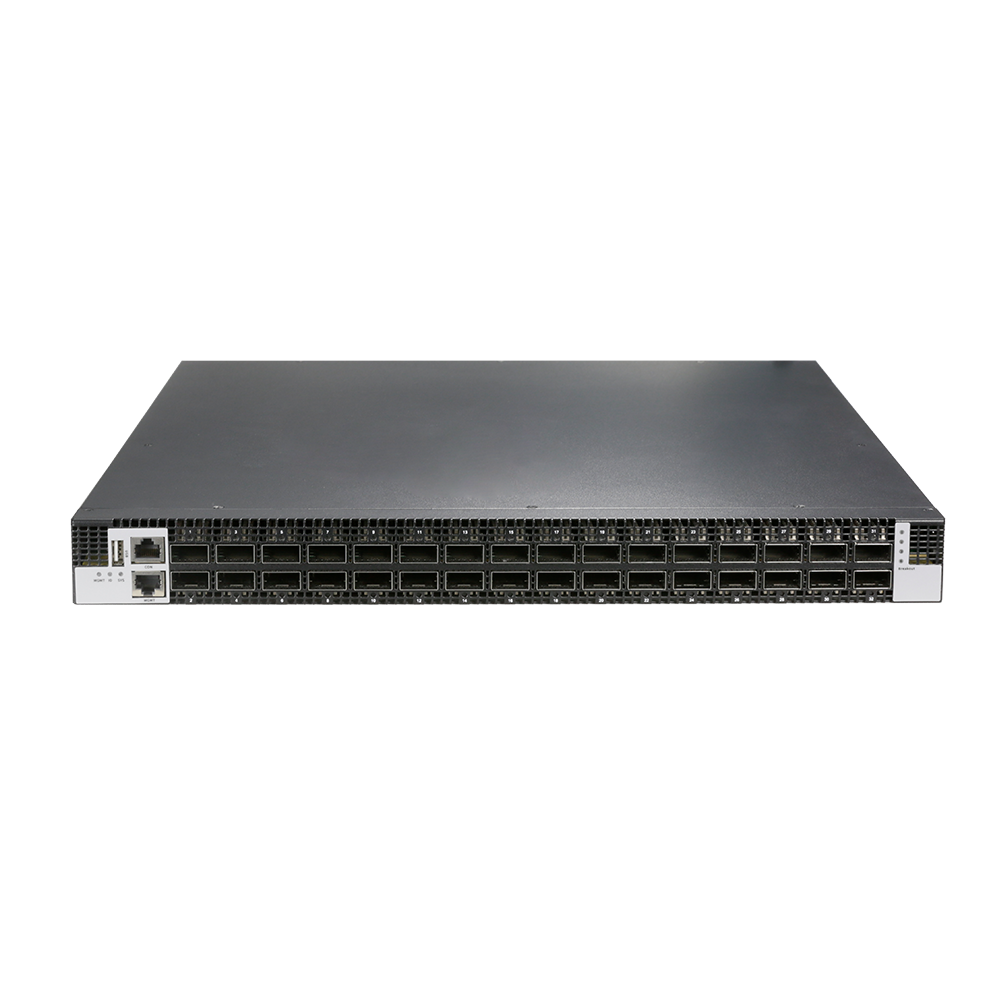

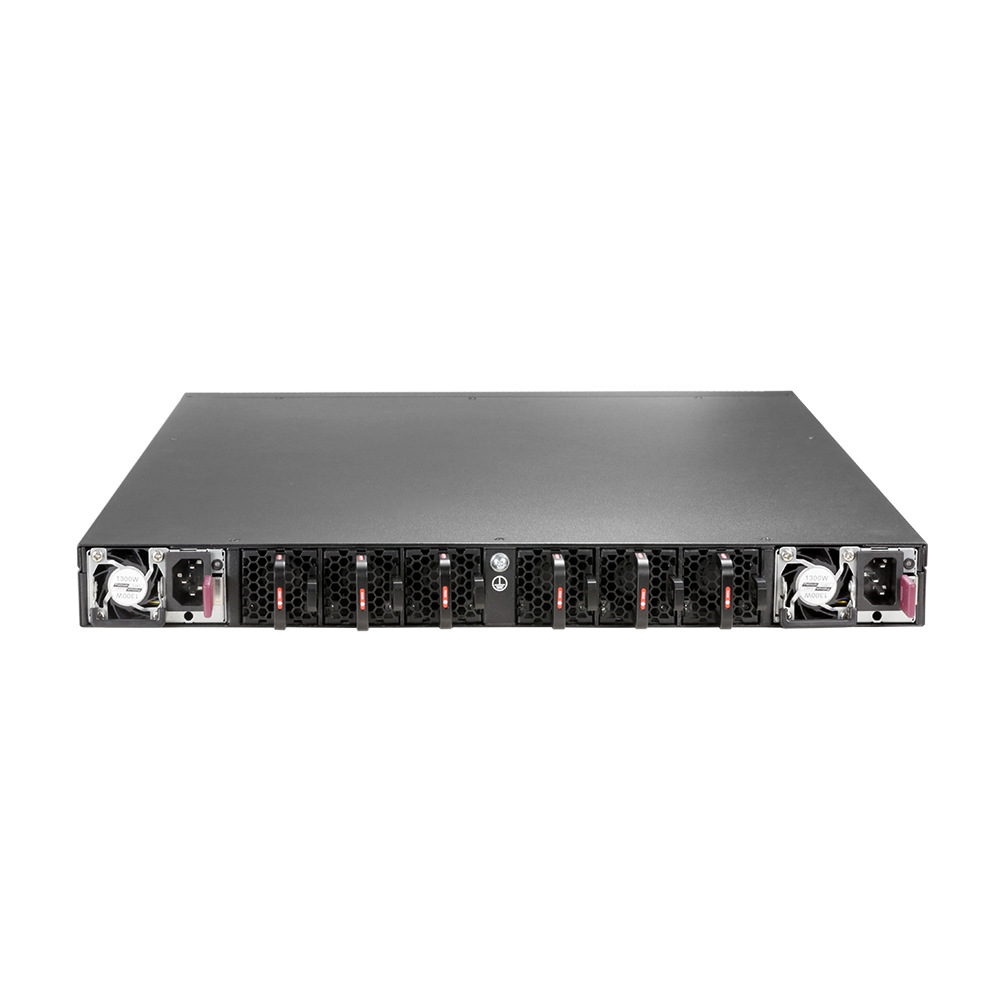

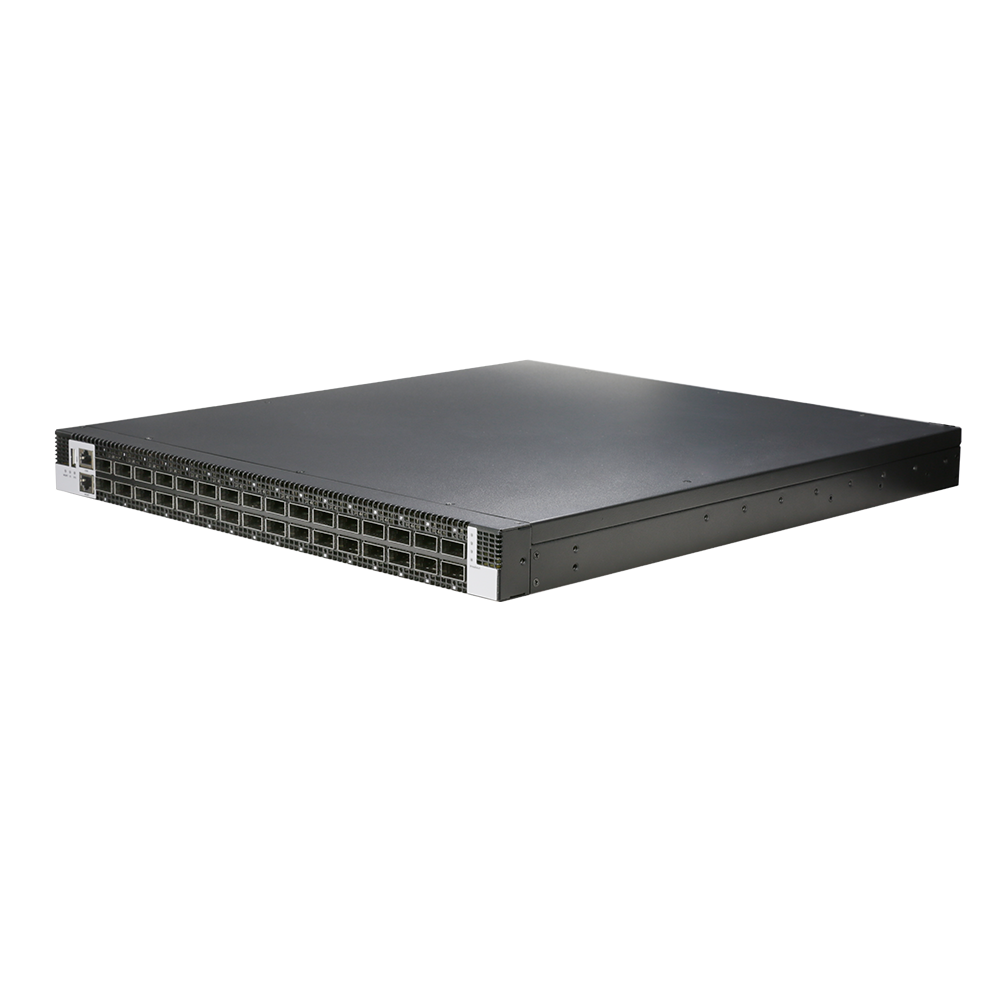

S8532-EI数据中心交换机，32个400G QSFP112，双电源模块，6*热插拔智能风扇模块

  • 高端口密度： 提供 32×400G QSFP112 接口，满足数据中心高速互联需求。
  • 高可靠性设计： 支持电源与风扇模块冗余热插拔，确保业务连续性。

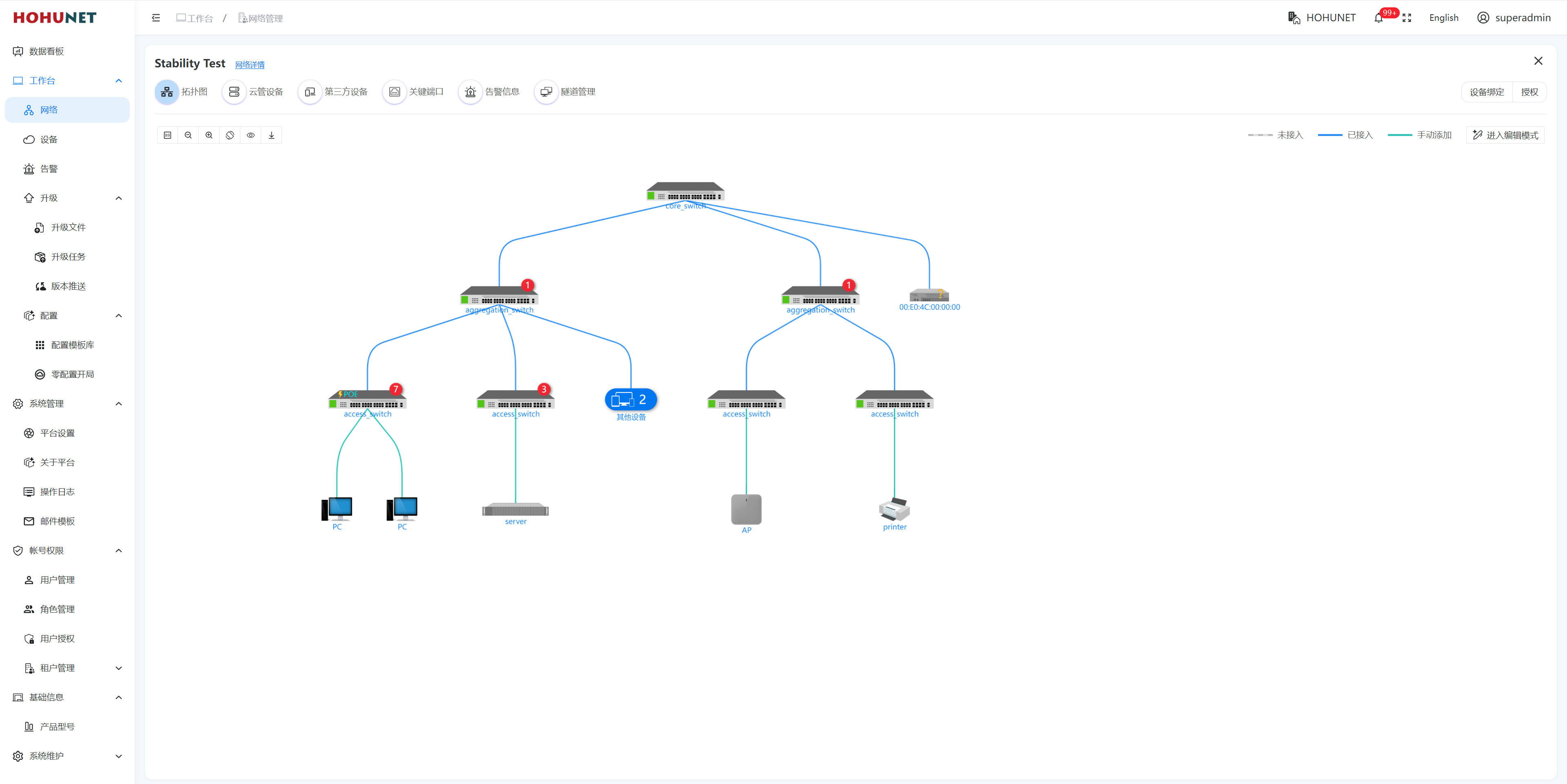

  • 云管理能力： 提供集中可视化管理与自动化运维，加速部署与故障定位。
  • 三层功能： 支持 VXLAN、EVPN、BGP、MacSec、PFC/ECN/DCBX、MLAG。
  • 支持 SNMP v1/v2c/v3、CLI、Telnet、SSH 等管理协议。
  1. VXLAN
  2. EVPN
  3. BGP
  4. MacSec
  5. IPv6
  6. PFC/ECN/DCBX
  7. MLAG

应用场景:

  1. 数据中心
  2. 超算
  3. AI
分类： ,
Get a quote
  • Previous Product
  • S9532数据中心交换机，32个800G OSFP，双电源模块，4*热插拔智能风扇模块
  • Next Product
  • S7824Z-EI数据中心交换机，24个100G QSF28，双电源模块，4*热插拔智能风扇模块

描述

产品简介

S8500系列交换机是通过SerdesX芯片平台构建的高性能高密度交换机，支持400G高密度高速率端口，拥有丰富的三层特性，例如BGP、EVPN、IPv6、VxLAN等，满足Spine-Leaf全三层网络架构设计要求，适用于数据中心应用场景。

关键特性

*支持MPLS特性，帮助企业构建统一融合的网络平台。
*支持MLAG，跨设备链路聚合技术，实现设备级冗余，灵活组网可靠性强。
*支持VxLAN和BGP协议，构建数据中心场景下的EVPN应用。
*支持交换机到交换机使用MACsec或AES-CMAC进行加密功能。
*支持Precision Timing协议。 丰富的L2/L3特性，例如IPv6、OSPF、BGP、PIM等等。

出色的管理特性

S8500系列交换机支持丰富的管理接口，包括Console、带内网口和带外网口、USB口；支持SNMPv1/v2/v3，支持CLI命令行，Web网管，TELNET及FTP配置，支持OAM，使设备管理更方便，并且支持SSH2.0、SSL等加密方式，使得管理更加安全。 此外，HOHUNET依靠深厚的技术积累和对园区及企业网络需求的深入理解，推出大湖云维平台（DHCS），可以提高网络管理和维护效率，降低成本，提升网络管理的智能化水平，让网络更加快速、智能、安全、可靠化，更好地服务于用户的需求。

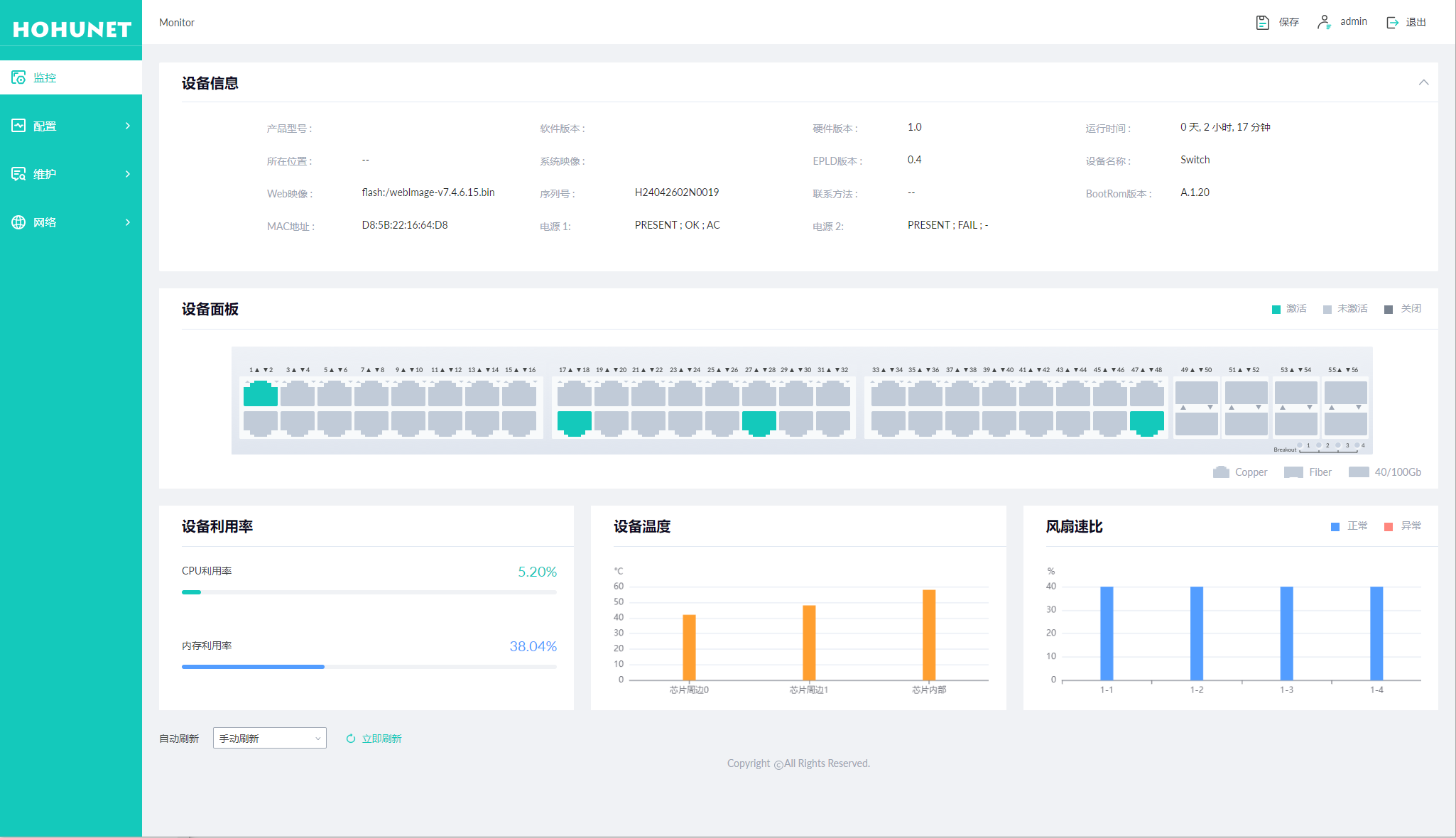

可视化Web界面

HOS支持可视化Web界面，可实现快速配置，降低用户操作门槛。

硬件规格

型号 S8532-EI
以太网口 32×400G QSFP112
管理口 串口：1×RJ45 to DB9
MGMT：1×1G RJ45
存储：1×USB
电源类型 2×1300W可插拔电源模块（C13）
风扇类型 6×可插拔风扇模块
Memory eMMc：8GB

DRAM：4GB
CPU 4-core processor，ARM A53（1GHz）
交换容量（双向） 25.6Tbps
包转发率（双向） 38.09Gpps
满载功耗 318W
典型功耗 307W
噪声(dBA) TBD
最大风量 [CFM] 264.16cfm
MTBF ≥90000h
工作海拔 ≤5000m
设备尺寸（宽×高×深） 44.2×4.4×49.7cm
运行温度 0℃ to 45℃
芯片平台 SerdesX平台

软件规格

阅读小贴士：

EB-基础许可证  MS-高级许可证  MA-城域网许可证  ST-堆叠许可证
◯-支持  X-不支持

类 子类 特性 描述 EB MS MA 说明
Ethernet basic features Ethernet interface Ethernet interface operating modes(full duplex, half duplex, and auto-negotiation) ◯ ◯ ◯
Ethernet interface operating rates ◯ ◯ ◯
Jumbo Frame ◯ ◯ ◯
port-xconnect ◯ ◯ ◯
Flow-control Flow-control tx/rx ◯ ◯ ◯
storm-control Port based storm-control ◯ ◯ ◯
VLAN based storm-control ◯ ◯ ◯
Port-block Port-block(know/unknown unicast; know/unknown multicast/broadcast) ◯ ◯ ◯
Port-isolate L2/L3/All  Port-isolate ◯ ◯ ◯
Uni-direction isolate ◯ ◯ ◯
L2 Protocol Tunnel L2 Protocol Tunnel(support CFM/DOT1X/SLOW-PROTO/STP ◯ ◯ ◯
Forward mode Store-and-forward ◯ ◯ ◯
Cut-through ◯ ◯ ◯
VLAN VLAN Access mode Access/Trunk ◯ ◯ ◯
Default VLAN ◯ ◯ ◯
VLAN Classification VLAN Classification(port based/mac based/IP based/protocol based) ◯ ◯ ◯
QinQ Basic QinQ ◯ ◯ ◯
Selective QinQ ◯ ◯ ◯
VLAN Mapping(1:1 VLAN Translation) ◯ ◯ ◯
VLAN Statistics VLAN Statistics ◯ ◯ ◯
Private VLAN Private VLAN ◯ ◯ ◯
Voice VLAN Voice VLAN ◯ ◯ ◯
Guest VLAN Guest VLAN ◯ ◯ ◯
MAC MAC Address Table Automatic learning and aging of MAC addresses ◯ ◯ ◯
Hardware Learning ◯ ◯ ◯
Static and dynamic  MAC address entries ◯ ◯ ◯
Blackhole MAC ◯ ◯ ◯
MAC Flapping detect MAC Flapping detect ◯ ◯ ◯
Port Bridge Port Bridge ◯ ◯ ◯
LAG Link aggregation Static-LAG & LACP ◯ ◯ ◯
LAG load balance(SLB) ◯ ◯ ◯
LAG load balance(DLB) ◯ ◯ ◯
LAG load balance(RR) ◯ ◯ ◯
LAG Self-healing ◯ ◯ ◯
Link aggregation weighting ◯ ◯ ◯
Ethernet Ring protection features xSTP STP Spanning-Tree Protocol ◯ ◯ ◯
RSTP Rapid Spanning-Tree Protocol ◯ ◯ ◯
MSTP Multi-instance Spanning-Tree Protocol ◯ ◯ ◯
Spanning-Tree Protocol Protection BPDU Filter/Guard ◯ ◯ ◯
Root Guard ◯ ◯ ◯
Loop Guard ◯ ◯ ◯
Anti TC-BPDU attack ◯ ◯ ◯
ERPS ERPS Single ERPS ring ◯ ◯ ◯
tangent ERPS rings ◯ ◯ ◯
intersecting ERPS rings ◯ ◯ ◯
compatible with RRPP ◯ ◯ ◯
Loop back Detect Loop back Detect Loop back detection ◯ ◯ ◯
Layer2 Multicast Layer2 Multicast IGMP Snooping IGMPv1/v2/v3 Snooping ◯ ◯ ◯
Fast leave ◯ ◯ ◯
Static IGMP snooping group ◯ ◯ ◯
MVR MVR(Multicast VLAN Registration) ◯ ◯ ◯
IPv4 Forwarding ARP ARP Static and dynamic ARP entries ◯ ◯ ◯
Aging of ARP entries ◯ ◯ ◯
Gratuitous ARP ◯ ◯ ◯
ARP proxy basic ARP-Proxy ◯ ◯ ◯
local ARP-Proxy ◯ ◯ ◯
IPv4 Unicast Routing IPv4 Static Routes IPv4 Static Routes ◯ ◯ ◯
Black hole Routes ◯ ◯ ◯
co-work with IP SLA ◯ ◯ ◯
VRF(Virtual Routing and Forwarding) ◯ ◯ ◯
uRPF check ◯ ◯ ◯
RIP RIPv1/v2 ◯ ◯ ◯
OSPFv2 OSPFv2 X ◯ ◯
IS-IS IS-IS X ◯ ◯
BGP IBGP X ◯ ◯
EBGP X ◯ ◯
Route policy Route-map ◯ ◯ ◯
IPv4 prefix-list ◯ ◯ ◯
PBR PBR(Policy-based Routing) ◯ ◯ ◯
ICMP ICMP redirect ◯ ◯ ◯
ICMP unreachable ◯ ◯ ◯
ECMP ECMP(SLB) ◯ ◯ ◯
ECMP(DLB) ◯ ◯ ◯
ECMP(RR) ◯ ◯ ◯
ECMP Self-healing ◯ ◯ ◯
IPv4 Multicast Routing IGMP IGMPv1/v2/v3 ◯ ◯ ◯
IGMP-Proxy ◯ ◯ ◯
IGMP SSM Mapping ◯ ◯ ◯
PIM PIM-SM X ◯ ◯
PIM-DM X ◯ ◯
IPv6 Forwarding IPv6 Basic Protocol ICMPv6 ICMPv6 X ◯ ◯
NDP NDP X ◯ ◯
IPv6 Unicast Routing IPv6 Static Routes IPv6 Static Routes X ◯ ◯
RIPng RIPng X ◯ ◯
OSPFv3 OSPFv3 X ◯ ◯
IS-IS IS-IS X ◯ ◯
BGP4+ BGP4+ X ◯ ◯
IPv6 Multicast Routing MLD v1/v2 MLD v1/v2 X ◯ ◯
MLD v1/v2 Snooping MLD v1/v2 Snooping X ◯ ◯
MVR6 MVR6 X ◯ ◯
PIM-SM v6 PIM-SM v6 X ◯ ◯
IP Tunnel IPv6 over IPv4 Tunnel IPv6 over IPv4 Tunnel X ◯ ◯
6to4 Tunnel 6to4 Tunnel X ◯ ◯
ISATAP Tunnel ISATAP Tunnel X ◯ ◯
IPv6 Service DHCPv6 DHCPv6 Relay X ◯ ◯
DHCPv6 Snooping X ◯ ◯
IPv6 Prefix List IPv6 Prefix-list X ◯ ◯
Device reliability features BFD BFD BFD for Static route X ◯ ◯
BFD for OSPFv2 X ◯ ◯
BFD for VRRP/Track X ◯ ◯
BFD for PBR X ◯ ◯
VRRP VRRP VRRP ◯ ◯ ◯
Track for VRRP ◯ ◯ ◯
Smart Link Smart Link multi-instance ◯ ◯ ◯
load balance ◯ ◯ ◯
Multi-Link ◯ ◯ ◯
Monitor-link ◯ ◯ ◯
MLAG MLAG MLAG basic ◯ ◯ ◯
MLAG orphan Port ◯ ◯ ◯
Stacking Stacking Maximum number of stacked devices: 8
Stack port: Any port or AGG		 ◯ ◯ ◯ 需要ST license支持
ethernet OAM EFM EFM (802.3ah) Auto detection X ◯ ◯
Network fault detection X ◯ ◯
Network fault handle X ◯ ◯
remote loop back X ◯ ◯
CFM CFM (802.1ag) Hardware CCM detect X ◯ ◯
MAC Ping X ◯ ◯
MAC Trace X ◯ ◯
Y.1731 Y.1731 Loss measure(LM) X ◯ ◯ BigFlow和SerdesX平台不支持
Latency and Jitter measure(DM) X ◯ ◯
PoE features PoE System Power management Power supply on-spot detection ◯ ◯ ◯
Power supply capability detection ◯ ◯ ◯
Power capability auto configuration (PSE) ◯ ◯ ◯
Power Supply Management Legacy PD detection ◯ ◯ ◯
PD max power management ◯ ◯ ◯
PD priority management ◯ ◯ ◯
Power Supply Task Plan management(Not ready) ◯ ◯ ◯
PD Mandatory power supply ◯ ◯ ◯
operations management PSE log ◯ ◯ ◯
PSE Chipset temperature inquire ◯ ◯ ◯
PSE firmware update ◯ ◯ ◯
QoS features QoS Traffic classification Traffic classification based on COS/DSCP (simple classification) ◯ ◯ ◯
Traffic classification based on ACL ( complex classification) ◯ ◯ ◯
Traffic classification based on inner header of the tunnel packets ◯ ◯ ◯
Traffic behaviors Queue scheduling ◯ ◯ ◯
Remark the priority fields(COS/DSCP) of the packet based on ACL ◯ ◯ ◯
Remark the priority fields(COS/DSCP) of the packet based on Table Map ◯ ◯ ◯
Flow redirection ◯ ◯ ◯
Flow mirror ◯ ◯ ◯
Traffic policing Traffic policing based on direction(in/out)  of Port ◯ ◯ ◯
Traffic policing based on direction(in/out) of VLAN ◯ ◯ ◯
Traffic policing based on direction(in/out) of flow ◯ ◯ ◯
Traffic policing based on direction(in/out) of aggregated flow ◯ ◯ ◯
Traffic shaping Queue based traffic shaping ◯ ◯ ◯
Port based traffic shaping ◯ ◯ ◯
Congestion management SP(Strict Priority)scheduling ◯ ◯ ◯
WDRR(Weighted Deficit Round Robin)scheduling ◯ ◯ ◯ SerdesX平台不支持
SP + WDRR mixed scheduling ◯ ◯ ◯ SerdesX平台不支持
Congestion avoidance TD(Tail Drop) ◯ ◯ ◯
WRED(Weighted Random Early Detection) ◯ ◯ ◯
Traffic statistics Packet counts and bytes statistics based on traffic classification ◯ ◯ ◯
Packet counts and bytes statistics based on the color after traffic policing ◯ ◯ ◯
Forwarded and discarded packet counts and bytes statistics ◯ ◯ ◯
ECN (Explicit congestion ECN tags based on Tail Drop ◯ ◯ ◯ SerdesX平台不支持
ECN tags based on WRED ◯ ◯ ◯
Data Center VARP Virtual gateway VARP(Virtual-ARP) ◯ ◯ ◯
VARP subnet ◯ ◯ ◯
Tunnel VxLAN Manual configure VxLAN tunnel ◯ ◯ ◯
VxLAN distributed gateway ◯ ◯ ◯
VxLAN active-active access ◯ ◯ ◯
Interconnect across Data Centers based on VxLAN ◯ ◯ ◯
Edit DSCP in VxLan outer header ◯ ◯ ◯
BGP EVPN ◯ ◯ ◯
Support to enable/disable overlay split horizon per-VNI ◯ ◯ ◯
GRE Tunnel GRE Tunnel ◯ ◯ ◯
NVGRE Tunnel NVGRE Tunnel ◯ ◯ ◯
GENEVE Tunnel GENEVE Tunnel ◯ ◯ ◯
DCB DCBX LLDP support DCBX TLV ◯ ◯ ◯
PFC PFC ◯ ◯ ◯
Metro Feature MPLS LDP LDP X X ◯
MPLS Forwarding MPLS Forwarding X X ◯
VPWS VPWS (L2VPN) X X ◯
VPLS VPLS (L2VPN) X X ◯
L3VPN L3VPN X X ◯
MPLS OAM MPLS OAM X X ◯
MPLS Stats MPLS Stats X X ◯
ACL ACL X X ◯
Qos Qos X X ◯
Security and management System Security SSH SSHv1/v2 ◯ ◯ ◯
RSA Key generation ◯ ◯ ◯
RADIUS RADIUS ◯ ◯ ◯
TACAS+ TACAS+ ◯ ◯ ◯
AAA Authentication ◯ ◯ ◯
Authorization ◯ ◯ ◯
Accounting ◯ ◯ ◯
Dot1x Port based dot1x ◯ ◯ ◯
MAC based dot1x ◯ ◯ ◯
Guest VLAN ◯ ◯ ◯
ACL MAC/IP ACL ◯ ◯ ◯
Basic Mode ACL ◯ ◯ ◯
Port-group ACL ◯ ◯ ◯
VLAN-group ACL ◯ ◯ ◯
IPv6 ACL ◯ ◯ ◯
ACL UDF ◯ ◯ ◯
Time Range ◯ ◯ ◯
ARP Inspection ARP Inspection ◯ ◯ ◯
IP Source Guard IP Source Guard ◯ ◯ ◯
Port Security Limitation on MAC address learning on interface ◯ ◯ ◯
VLAN Security Limitation on MAC address learning on VLAN ◯ ◯ ◯
Control Plane Policy (COPP) Black list/wihte list ◯ ◯ ◯
Rate limit ◯ ◯ ◯
CPU Traffic Limit CPU Traffic Limit ◯ ◯ ◯
Prevent DDOS attack Prevent DDOS attack (ICMP Flood/Smurf/Fraggle/LAND/SYN Flood) ◯ ◯ ◯
Login filter Telnet/SSH ACL filtering ◯ ◯ ◯
Telnet/SSH IPv6 ACL filtering ◯ ◯ ◯
MAC Security MacSec(802.1AE) ◯ ◯ ◯ BigFlow平台不支持
Link-Flapping detection Link-Flapping detection ◯ ◯ ◯
Network Management DHCP DHCP Server ◯ ◯ ◯
DHCP Relay ◯ ◯ ◯
DHCP Snooping ◯ ◯ ◯
DHCP Client ◯ ◯ ◯
DHCP Option82 ◯ ◯ ◯
DHCP Option252 ◯ ◯ ◯
RMON RMON ◯ ◯ ◯
sFlow sFlow v4/v5 ◯ ◯ ◯
IP SLA IP SLA ◯ ◯ ◯
IPFIX IPFIX ◯ ◯ ◯
EFD Elephant Flow Detection ◯ ◯ ◯ BigFlow平台不支持
NTP NTP(Network Time Protocol) ◯ ◯ ◯
PTP（IEEE 1588） TC（Support P2P/E2E、Ethernet/Udp Transport） ◯ ◯ ◯
BC/OC(Support OneStep/TwoStep、Request-response/Peer-delay Ethernet/Udp Transport) ◯ ◯ ◯
Err-disable Err-disable detection and recovery ◯ ◯ ◯
DNS Static DNS Client ◯ ◯ ◯
LLDP LLDP ◯ ◯ ◯
Terminal Services Command Line Interface Configurations through CLI (Command Line Interface) ◯ ◯ ◯
Help information Banner configuration ◯ ◯ ◯
Help information in English ◯ ◯ ◯
Terminal service Vty Terminal service ◯ ◯ ◯
Console Terminal service ◯ ◯ ◯
Management interface In-band management interface and configuration ◯ ◯ ◯
Out-band management interface and configuration ◯ ◯ ◯
Configuration and maintenance Configuration Management SNMP Network management based on SNMPv1/v2c/v3 ◯ ◯ ◯
Public and private MIB ◯ ◯ ◯
Public and private Trap ◯ ◯ ◯
WEB Configuration and management based on WEB UI ◯ ◯ ◯
Cloud Management Automatic device connection management ◯ ◯ ◯  Cloud Management需要与 DHCS 云管理系统配合使用;DHCS 可以部署在公共云上或私有环境中
Zero-configuration deployment ◯ ◯ ◯
Automatic network topology ◯ ◯ ◯
Network monitoring and alarm notification ◯ ◯ ◯
Configuration and one-click rollback ◯ ◯ ◯
Cross-network tunneling connection to network device(web/ssh/telnet) ◯ ◯ ◯
Scheduled tasks deployment ◯ ◯ ◯
RPC-API Configuration and management based on RPC-API ◯ ◯ ◯
Smart Config Smart Config(Automatically configuration when system start) ◯ ◯ ◯
system profile configuration change the system specifications by choose different STM Profiles ◯ ◯ ◯
Restore factory default configuration Restore factory default configuration ◯ ◯ ◯
File System File system File system(support directory and file management) ◯ ◯ ◯
Upload and download Upload and download files through FTP or TFTP ◯ ◯ ◯
Upload and download files through Xmodem ◯ ◯ ◯
Debugging And Maintenance Debug per-module Debug features ◯ ◯ ◯
ICMP Debug ◯ ◯ ◯
BHM Software process monitor: BHM(Beat Heart Monitor) ◯ ◯ ◯
Hardware Watch Dog ◯ ◯ ◯
Log & alarm CPU usage display and  alarm ◯ ◯ ◯
Memory  usage display and  alarm ◯ ◯ ◯
Device temperature, PSU, FAN, status display and alarm ◯ ◯ ◯
User operation logs ◯ ◯ ◯
Management of logs, alarms, and debugging information ◯ ◯ ◯
VCT VCT(Virtual Cable Test) ◯ ◯ ◯
system diagnostics Detailed Diagnostic-information collection ◯ ◯ ◯
Reboot Manual reboot ◯ ◯ ◯
Schedule Reboot ◯ ◯ ◯
Reboot Information logging ◯ ◯ ◯
network diagnostics Ping ◯ ◯ ◯
IPv6 Ping ◯ ◯ ◯
Trace route ◯ ◯ ◯
mirror Port mirror ◯ ◯ ◯
Flow mirror ◯ ◯ ◯
Remote mirror ◯ ◯ ◯
Multi-destination mirror(m:n) ◯ ◯ ◯
Use CPU as mirror source ◯ ◯ ◯
Use CPU as mirror destination and analyze packet ◯ ◯ ◯
ERSPAN ◯ ◯ ◯
CPU statistics To CPU/From CPU packets statistics ◯ ◯ ◯
L2 Ping layer2 network connectivity detection – L2Ping (MAC Ping/Trace) ◯ ◯ ◯
UDLD UDLD(Unidirectional Link Detection) ◯ ◯ ◯
unidirectional unidirectional forwarding of the fiber ◯ ◯ ◯
Loop back port loop back ◯ ◯ ◯
hardware loop back(internal/external) ◯ ◯ ◯
System time Time configuration ◯ ◯ ◯
Timezone ◯ ◯ ◯
Software System software upgrate Update via TFTP ◯ ◯ ◯
upgrate Uboot upgrate Uboot upgrate ◯ ◯ ◯

许可证

事项 描述
License MS，全三层软件许可证。
License MA，城域网软件许可证。
License ST，堆叠软件许可证。

下载

相关产品
