10G 交换机

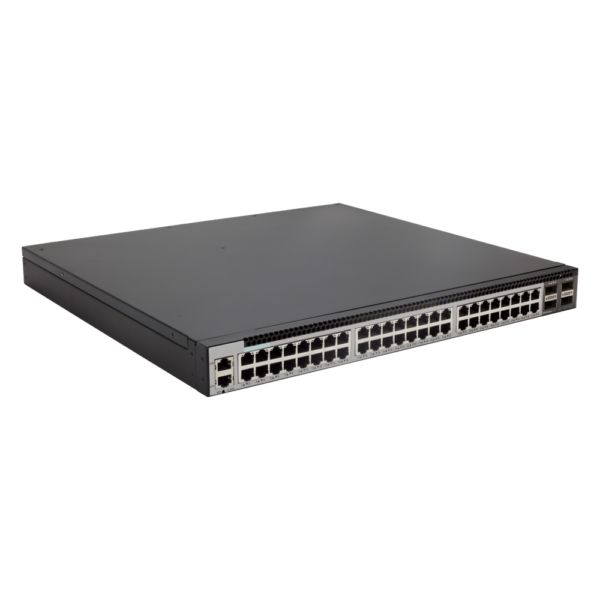

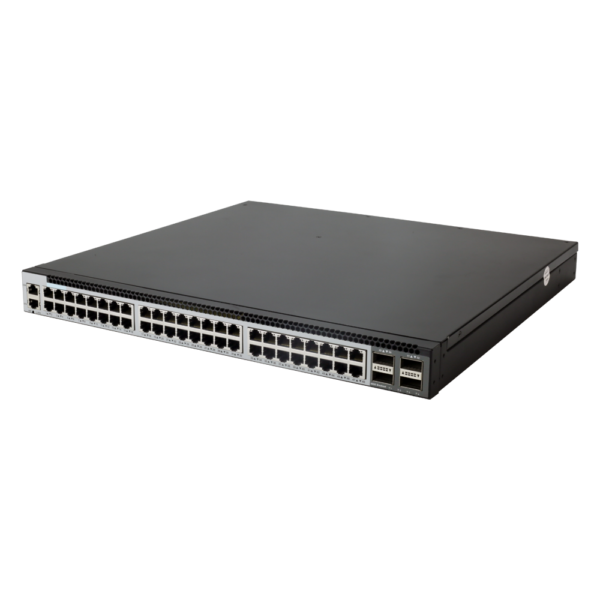

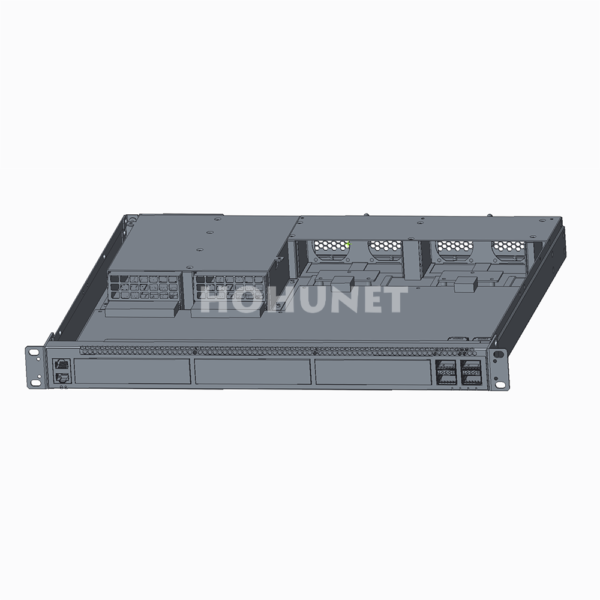

S5648T-4Q 三层全网管交换机（48*10G Base T + 4*40G）双电源，智能风扇

  • 1+1 可热插拔的冗余电源
  • 双风扇模块
  • 可以根据实时功率调整转速的智能风扇
  •  QoS , DHCP , BGP , ACL
  • ERPS, VRRP
  • Web, CLI, Snmp

功能亮点:

  1. QinQ
  2. BGP
  3. OSPF
  4. MLAG
  5. IPv6
  6. VxLAN
  7. MPLS
  8. Layer 3 high-function

应用场景:

  1. 企业和园区网络
  2. 电信网络
  3. 数据中心网络
分类：
Get a quote
  • Previous Product
  • S5648T-8Z 万兆三层多速率SDVoE交换机，48个万兆多速率电口，8个100G QSFP28光口，1+1电源备份，4个智能风冷模组
  • Next Product
  • S5624T-8N 三层全网管交换机（ 24*10GBASE-T，8*25G ）双电源, 智能风扇

描述

设备简述：

S5648T-4Q产品是HOHUNET自主研发的40GE交换产品，定位于大型网络汇聚，中小型网络核心，特别是新一代网咖的骨干交换。其中H6048X-4Q支持48个万兆光口，4个40GE光口； H6048T-4Q支持48个万兆RJ45口，4个40GE光口; H6048T－4Q是业内第一款高密度高性能10GbaseT产品，使用户能够实现基于普通CAT6A类双绞线实现超高速网络架设。

高性能全线速转发

本系列交换机具备全线速万兆交换转发能力，最大交换容量可达1280Gbps，最大包转发速率可达952.32Mpps，可应用于多种网络环境下，是组建智能万兆骨干网的理想选择。

出色的QoS管理

S5648T-4Q路由交换机为每个端口提供了8个硬件队列。支持多阶调度（WDRR，SP）和Tail Drop/WRED 等拥塞保护机制。并且运用了灵活的队列调整算法来实现针对队列或者针对端口的流量整形。

同时，入口和出口方向的策略管理都提供了以64Kbps为单位的带宽监测。支持srTCM(单速率三色标记)和trTCM（双速率三色标记）。

数据中心DCB特性

S5648T-4Q支持许多新的数据中心功能，如优先级的流量控制（PFC），增强传输选择（ETS），量化拥塞通知（QCN），以及数据中心的TCP。 MLAG在数据中心网络TOR交换机上也是很好的选用特性。

多种软件镜像提供灵活的部署选择

S5648T-4Q路由交换机提供2个不同特性的软件：标准版和增强版。客户可根据网络部署具体需求来选择软件。

绿色节能的系统设计

S5648T-4Q交换机采用可调速风扇，系统根据外部环境温度高低，对风扇速度进行自动调节，以节省能源。交换机可根据端口的业务流量大小，来调整功率消耗，尽可能节省能源。

性能参数

S5648T-4Q 是一款高密度高性能的万兆产品，设备实测的性能参数如下：

性能规格指标表
类别 特性 描述 Default
Profile		 Layer 2
Profile		 Layer 3
Profile		 IPv6
Profile
以太网基础 Jumboframe Maximum Size 9600
Unicast MAC MAC address Capacity 65536 131072 32768 32768
MAC Learning Rate (SW) 3144 fps
MAC Learning Rate (HW) 6046093 fps
Blackhole MAC address capacity 128
Multicast MAC MAC address Capacity 2048 2048 1024 1024
VLAN VLAN IDs 4094
Vlan Instances 4094
STP Convergence time 30s
RSTP Convergence time 775ms
MSTP Instance Num 64
Convergence time 774ms
Link Aggregation
(Static&LACP)		 Maximum Member Num 16
Maximum Group Num 55
Load balance key mode destport/inner-destport/inner-ip-protocol/inner-ipda/inner-ipsa/inner-macda/inner-macsa/inner-sourceport/ip-protocol/ipda/ipsa/macda/macsa/nvgre-vsid//sourceport/vxlan-vni
Convergence time < 20ms
Smart-Link Maximum Groups Num 16
Maximum Protection Instance Num 64
Switchover time < 25ms
VLAN Classification Base MAC Capacity 512 1024 512 512
Base IPv4 Capacity 512 512 1024 512
Base IPv6 Capacity N/A N/A N/A 256
IPv4单播 ARP ARP Capacity 4096 1024 20480 4096
IPv4 FIB 8192 2048
ECMP Group 240
VRRP Management Groups Num 31
Switchover time < 4*advt_interval (advt_interval=100ms or 1s)
PBR Policy Route Map 32 N/A 32 32
Policy Based Routing ACE 64 N/A 64 64
IPv4 BFD Session Capacity 128 N/A N/A N/A
IPv4 组播 IPMC Number of interfaces that support Multicast routing table 255
Multicast Routing Table 1023 0 1023 1023
IGMP Snooping Maximum Groups Num 2048
MVR Maximum Entry Num 511
IPv6 单播 Host Route NDP Capacity N/A N/A N/A 4096
IPv6 FIB N/A N/A N/A 1536
ECMP Group N/A N/A N/A 240
IPv6 组播 IPMC Number of interfaces that support Multicast routing table N/A N/A N/A 255
Multicast Routing Table N/A N/A N/A 255
MLD Snooping Maximum Groups Num N/A N/A N/A 4096
MVR V6 Maximum Entry Num N/A N/A N/A 255
IP 隧道 IP Tunnel Tunnel Peer Capacity 8 N/A 8 32
QoS QoS Per-port Queue Num 8
System Packet Buffer Capacity 3M
Policer granularity 0-2Mbps           : 16Kbps
2Mbps-100Mbps     : 32Kbps
100Mbps-1Gbps     : 64Kbps
1Gbps-2Gbps       : 128Kbps
2Gbps-4Gbps       : 256Kbps
4Gbps-10Gbps      : 512Kbps
10Gbps-40Gbps     : 1024Kbps
40Gbps-100Gbps    : 2048Kbps
Shape granularity 8Kbps
Ingress port qos ipv4 flow entries 2043 2043 2043 1019
Ingress port qos ipv6 flow entries N/A N/A N/A 507
ACL IPv4 ACL Ingress port acl for IPv4 2047 2047 2047 1023
Ingress vlan acl for IPv4 255 255 255 127
Egress port acl for IPv4 255 255 255 127
IPv6 ACL Ingress port acl for IPv6 N/A N/A N/A 511
Ingress vlan acl for IPv6 N/A N/A N/A 63
Egress port acl for IPv6 N/A N/A N/A 63
安全与应用 IP Source Guard IPv4/IPv6 maximum rules Num 1024 1024 512 512
802.1x base MAC Maximum Entries 2048 512 512 512
DHCP-Snooping Maximum bound entry 4096
城域网特性 Vlan Mapping Maximum mapping table 64
Maximum rules Num 1024 2048 1024 1024
ERPS Domain Num 16
Ring Num 3/domain
Protection instance Num per Ring 1
Switchover time < 50 ms (optical port)
Overlay VXLAN VXLAN tunnel 8192 8192 8192 3072
VNI 2000
VTEP Peer 1024
VXLAN Gateway MAC for DVR 224 256 256 64
IPFix IPFix IPfix Member 16384 N/A 16384 16384



规格

产品规格

S5648T-4Q
产品定位 数据中心TOR交换机，企业网/城域网接入交换机、汇聚交换机
转发模式 Store and Forwarding/ Cut Through
CPU类型 PowerPC P1010 533MHz
Flash 2GB (NAND)
内存 1GB
硬件配置 端口型态 48x10GE Base-T
4x40GE QSFP+
扩展子卡 不支持
串口类型 RJ45
带外管理口 一个RJ45带外管理口
带内管理 支持
USB 端口 不支持
性能特性
交换性能 1.92Tbps (Chipset)
硬件及软件描述
硬件描述 • 标准 1U 19’’ 机架设备
• 48x10GE Base-T 端口
• 4x40GE QSFP+ 端口
软件升级方式 TFTP/FTP/WEB
系统重启或升级时系统中断时间 小于120s
电源
电源支持类型 AC 支持
DC 不支持
电源电压范围 AC 操作电压: 100 ~ 240V; 50/60H
最大电压: 90 ~ 264V; 47~63Hz
DC –
双电源输入 支持
电压热插拔特性 支持
典型功耗/最大功耗 150W / 280W
电压过压保护
支持电压过载保护 支持
保护等级 4 KV
其他
硬件尺寸 (H×W×D) in. 4.36 x 44.0 x 42.0 cm (1.73 x 17.5 x 16.5 in.)
重量 (kg) 7.9kg (include One PSU)
冷却类型 风冷(前后风向)
噪声 < 50 dB
风扇数量 4 (3 + 1 备份)
风扇热插拔特性 支持
风扇可调速特性 支持
操作温度 0 to 45 ℃



软件特性列表

特性列表
特性 描述 支持
以太网基础特性 Ethernet Ethernet interface operating modes: full duplex, half duplex, and auto-negotiation ●
Ethernet interface operating rates: 1Gbit/s, 10 Gbit/s, 40 Gbit/s, 100Gbit/s and auto-negotiation ●
Flow control on (TX and RX direction) ●
Jumbo frames (9600 Bytes) ●
Link aggregation (Static/LACP) ●
Static/Dynamic Load Balancing among the links of a Link aggregation ●
EF-DLB(elephant flow based DLB) ●
LAG self-healing ●
LAG support RR ●
Port Isolation ●
L2 Protocol Tunnel ●
Port-Block(unicast/broadcast/multicast) ●
Storm Control (unicast/broadcast/multicast) ●
VLAN Vlan access modes: access, trunk, and QinQ ●
MAC based VLAN Classification ●
IP based VLAN Classification ●
Protocol based VLAN Classification ●
QinQ(Basic QinQ and Selective QinQ) ●
VLAN Translation ●
Default VLAN ●
VLAN mapping ●
Voice Vlan ●
Guest VLAN ●
Private VLAN ●
MAC Automatic learning and aging of MAC addresses (Support HW learning) ●
Static, dynamic, and blackhole MAC address entries ●
Packet filtering based on source MAC addresses ●
Limitation on MAC address learning on interfaces (Port Security) ●
Limitation on MAC address learning on Vlans VLAN Security ●
以太网环网保护 MSTP STP ●
RSTP ●
MSTP ●
BPDU filter ●
BPDU guard ●
Root guard ●
Partitioned STP and BPDU tunnel ●
ERPS ERPS (Ethernet Ring Protection Switching) ●
Single ERPS ring, tangent ERPS rings, and intersecting ERPS rings ●
Hybrid networking of ERPS rings and other ring networks ●
二层组播 Layer 2 multicast IGMP snooping v1v2v3 ●
IGMP proxy ●
Fast leave ●
MAC based L2MC ●
Layer 2 Static Multicast ●
MVR(Inter-VLAN multicast replication) ●
IPv4路由 ARP Static and dynamic ARP entries ●
Gratuitous ARP ●
Aging of ARP entries ●
ARP ●
ARP Proxy ●
Unicast routing Static Routes ●
RIPv1&v2 ●
OSPF ●
BGP(Basic iBGP/eBGP) ●
ECMP ●
ECMP self-healing ●
ECMP-DLB(Dynamic Load Balance ECMP) ●
Route Map ●
Policy-Based Route (PBR) ●
uRPF check ●
VRF ●
Multicast routing IGMPv1/v2/v3 ●
PIM-SM ●
PIM-SSM ●
PIM-DM ●
Static Multicast ●
IPv6路由 IPv6 basic ICMPv6 ●
NDP ●
PMTU ●
IPv6 Unicast routing IPv6 Static Route ●
RIPng ●
OSPFv3 ●
IPv6 Multicast routing MLD v1/v2 ●
MLD Snooping ●
PIM-SMv6 ●
IPv6/IPv4 Tunnel Static Tunnel / ISTAP Tunnel / 6to4 Tunnel ●
IPv6 Application DHCPv6 Server/Relay/Snooping ●
IPv6 Prefix-list ●
QoS Traffic classification Traffic classification based on the combination of the MAC address, IPv4/IPv6 ddress, L2 protocol header, TCP, UTP, outgoing interface, and 802.1p field ●
Traffic behaviors Access control after traffic classification ●
Traffic policing based on traffic classification (Policer) ●
Re-marking based on traffic classification (COS, DSCP) ●
Class-based packet queuing ●
Queue scheduling SP (8 Strict Priority) ●
WDRR (Weighted Deficit Round Robin) ●
SP + WDRR ●
Congestion avoidance Tail Drop, WRED (Weighted Random Early Detection) ●
Shapping Shapping based on Interfaces and queues ●
Cloud Goodput Explicit congestion notification(ECN) ●
High bandwidth, Ultra Low Latency(HULL)(Virtual queuing to mark ECN) ●
冗余特性 Smartlink SmartLink ●
SmartLink multi-instance ●
MonitorLink ●
VRRP VRRP ●
BFD BFD (for Static IPv4 Route/VRRP/OSPF/Track) ●
M-LAG Multi-Chassis Link Aggregation ●
MLAG with Overlay(VXLAN, NVGRE, GENEVE) ●
STM Switch Table Management Switch Table Management (Flexible system profiles) ●
安全 System Security Hierarchical CLI protection to prevent unauthorized users from accessing Switch ●
SSH v2.0 ●
RADIUS and TACACS+ authentication ●
ACL filtering (Standard ACL and extend ACL) ●
ACL filtering(Inner header filter) ●
DHCP packet filtering (Option 82) ●
ARP Inspection ●
IP Source Guard ●
CPU Traffic Limit ●
Prevent DDOS attack (ICMP Flood/Smurf/Fraggle/LAND/SYN Flood) ●
AAA ●
802.1X ●
Telnet/SSH ACL filtering ●
RSA Key Generate ●
BHM (Beat Heart Monitor) ●
基本配置管理 Terminal service Configurations through CLI (Command Line Interface) ●
Help information ●
Login through console and Telnet terminals ●
File system File system ●
Directory and file management ●
Upload and download files through FTP or TFTP ●
IP Application DHCP Server ●
DHCP Relay ●
DHCP Snooping ●
DHCP Client ●
DNS ●
NTP ●
Device Management UDLD (Unidirectional Link Detection) ●
VCT (Virtual Cable Test) ●
LLDP ●
802.3az EEE (Energy-Efficient Ethernet) ●
Debugging and maintenance Management of logs, alarms, and debugging information ●
User operation logs ●
Detailed debugging information for diagnosing network faults ●
Network test tools (Such as traceroute and ping) ●
Local Mirror(Port Mirror and VLAN Mirror) ●
Remote Mirror ●
Multi-destination Mirror ●
L2 ping ●
Port loopback ●
Loopback Detection ●
SmartConfig ●
Network management Ping and Traceroute (IPv4) ●
SNMPv1/v2c/v3 (IPv4) ●
Standard MIB ●
WEB UI ●
RMON ●
s-Flow ●
Version upgrade Online upgrade software image ●
Online upgrade of the BootROM ●
数据中心 Extensibility Programmatic access to system state: Phython ●
Open API ●
OpenStack Neutron(cloud agent) ●
OVSDB(configure VLAN/Tunnel) ●
Virtualization Support VARP ●
VXLAN gateway ●
VXLAN bridge ●
VXLAN routing ●
GENEVE ●
NvGRE ●
DCB IEEE 802.1Qbb PFC (Priority Flow Control) ●



资料下载

S5648T-4Q Datasheet_CH
